Extend the life of your transmission efficiently and economically!
THE ISSUE WITH COOLING:
Thousands of automatic transmissions fail every year from overheating. Whether you're towing a heavy load or driving in stop-and-go traffic, you risk overheating your transmission fluid. When your transmission fluid reaches 200°, it starts breaking down.
• at 240° varnishes form and transmission life expectancy is halved.
• at 260° transmission internal seals and rubber parts harden; major damage starts.
• at 295° or above the transmission starts slipping, clutches burn, and carbon forms.
With each 20° drop in operating temperature, your fluid and equipment life doubles. Installing a cooler before damage starts and reducing the transmission fluid temperature by as much as 60° can greatly extend the life of your transmission.
THE DIESELSITE SOLUTION:
The COOLERMAX transmission cooler is specially designed by DIESELSITE to be a reliable upgrade over your existing transmission cooler OR as an auxiliary unit used with your OEM cooler.
In the 1999-2003 Ford 7.3L, the stock cooler is rated at 31,000 BTUs. Our 17-Row COOLERMAX is rated at nearly 59,000 BTUs... over 10,000 more BTUs than common 13-Row aftermarket units!
• 22.85" x 7.25" x 1.25" core
• Efficient 17-row stacked-plate core for optimal performance with minimal pressure loss
• JIC cooler fittings to 316 stainless hose barb adapters for corrosion prevention and leaks
• SAE J1532 transmission hose features a spiral polyester reinforcement for increased pressure tolerance
• Same bracket footprint as the Tru-Cool® 4739 transmission cooler
THIS KIT INCLUDES:
Installation hardware is supplied for use in the 1994-2003 Ford Super Duty 7.3L trucks and will allow you to install in-line with your existing transmission cooler.
(6) Six feet of 3/8" transmission cooler hose*
(2) 1/2" fJIC to 3/8" hose barb fittings
(2) Hose menders
Mounting Hardware
Related Products
Order online and have your products delivered to your closest store for free
Twisted Diesel LEVEL 1-4R100 Transmission 1999-2003
The LEVEL 1-4R100 Transmission comes with modified pump, modified valve body and standard factory replacement clutches, seals and bearings. Torque converter is triple disc Please specify year of truck when...
$4,495.00
Twisted Diesel LEVEL 2-4R110 Transmission 1999-2003
The LEVEL 2-4R100 Transmission comes with deep pan, modified clutch packs, modified pump and modified valve body. Gives firmer, quicker shifts. Good option for heavier towing and some increase in...
$6,000.00
Twisted Diesel LEVEL 3-4R110 Transmission 1999-2003
The Level 3-4R100/ Transmission comes with deep pan, highly modified valve body and modified pump. Clutch packs are highly modified for increased durability. Torque converter is triple disc with billet...
$7,500.00
Twisted Diesel LEVEL 4-4R100 Transmission 1999-2003
The Level 4-4R100 Transmission is the same as LEVEL 3 with added 300M intermediate and output shafts. Forward drum and overdrive planetary are made of billet steel and are cryogenically...
$9,600.00
-6%
Precision Industries Stallion Ford E4OD/4R100 Triple Disk Converter
1-2 Week Lead Time Since 1989 the Ford Power Stroke Diesel has had numerous types of failures. Ford Motor Company and the aftermarket specialists have addressed most of the issues....
-6%
$1,592.54
$1,831.22

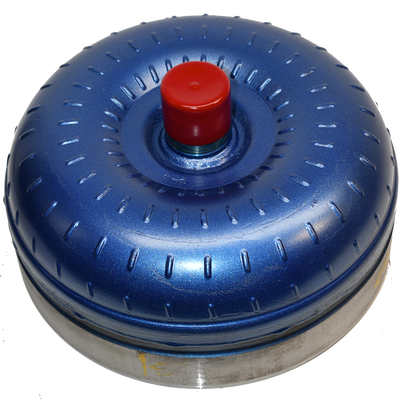

Diesel Performance Converters E4OD/4R100 Triple Disk Studded Converter
