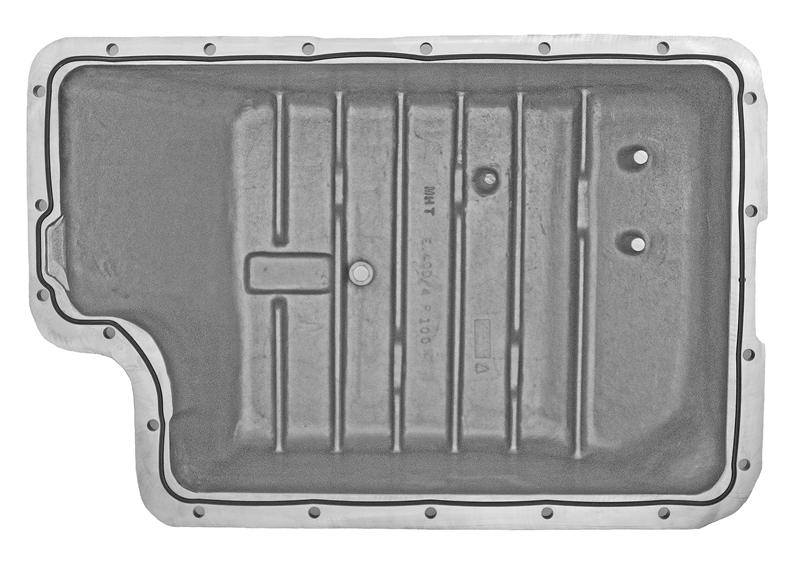

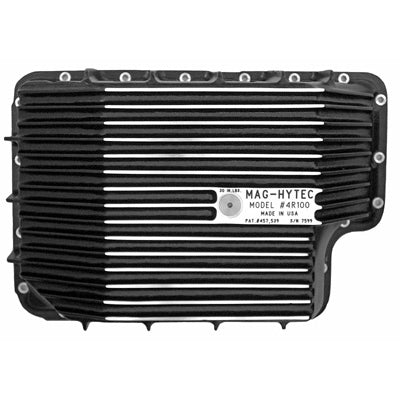

Mag-Hytec E4OD/4R100 Transmission Pan



The Mag-Hytec E4OD/4R100 Transmission Pan for your 1990 & Up F-Series provides function and fashion all in one package. Cast from A356-T6 aluminum, this textured powdercoated transmission pan provides increased fluid capacity for your hard working truck. The increased fluid capacity not only helps to cool your temperatures, but the built in cooling fins help remove heat as well. Each pan comes complete with hardware, magnetic drain plug assembly and an o-ring gasket for superior sealing.

Note: Due to the extended depth of the deep sump pan, this transmission pan requires the use of a 4WD filter. (sold separately, see above for Ford Motorcraft Transmission Filter)


  • Magnetic Drain Plug
  • Deep Sump For Increased Fluid
  • Pre-Drilled & Tapped 1/8" NPT Sender Port
  • O-Ring Seal Requires No Additional Gaskets Or Seals
  • 7.6 Quarts Increased Capacity Over Stock!
