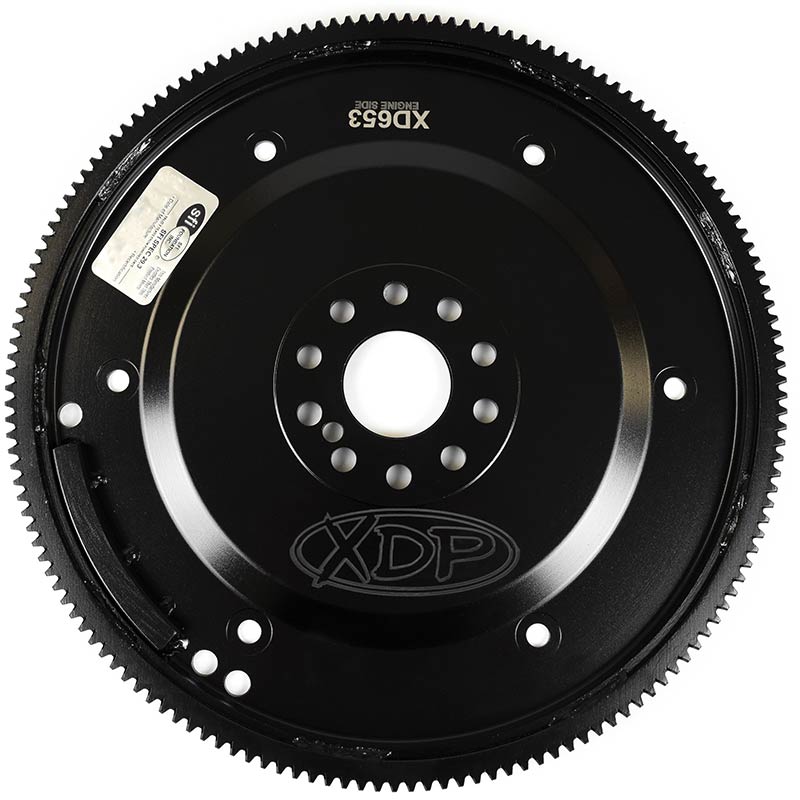

XDP XD653 Billet Tow & Race Series Flex Plate E4OD/4R100 94-03 7.3L Powerstroke

$518.95


Brand: XDP

The factory flex plate on a 7.3L was never meant to live behind a built engine and transmission. Once you add tuning, a bigger converter and some real towing or pulling, the stock plate starts taking heat around the converter mounts, and those hot spots turn into cracks. I've seen plenty of them come apart over the years here at the shop. The XDP Billet Tow & Race Series flex plate is the fix I'd put in any E4OD or 4R100 truck that's making more than stock power.

It's machined from billet steel forgings, precision balanced, SFI 29.3 certified, and rated to handle 1,500 lb-ft of torque. If you're already pulling the transmission for a rebuild or a converter, this is the time to do it.

Features

  • SFI 29.3 certified
  • Rated for 1,500 lb-ft of torque
  • Billet steel forging construction
  • Precision balanced
  • Black oxide finish to resist corrosion
  • Works with stock and billet torque converters
  • Built for hot shot towing, sled pulling, racing and heavily modified trucks

Specifications

  • Part Number: XD653
  • Ring gear: 155 teeth
  • Balance: External
  • Warranty: 2 year / unlimited mileage (XDP)

Fitment

  • 1994-2003 Ford 7.3L Powerstroke with E4OD or 4R100 automatic transmission

Install Notes

  • Some trucks have one or two shims on either side of the factory flex plate. Leave them out. The XDP plate is thicker than stock, and the shims will cut down on thread engagement of the crank bolts.
  • Stock crank and converter bolts will work, but I recommend upgraded flex plate bolts while you're in there.

Pairs well with the XDP XD714 harmonic balancer if you're building up the bottom end.
