Medusa Interface for Hydra Chip - Bluetooth Enabled

$215.00



Next-Gen Control

Medusa Interface Module for PHP Hydra Chip

Bring modern wireless app control and touchscreen dash integration to your existing PHP Hydra Chip—without replacing your current tuner or losing physical switch functionality.

Key Capabilities

📱

Bluetooth Control

Switch tune positions wirelessly directly from your smartphone or tablet using the Medusa app.

🖥️

Edge CTS3 Integration

Integrates as an EAS Power Level Controller to change tunes right from your CTS3 display.

🔘

Retain Original Switch

Keep your physical Hydra switch installed as a reliable backup alongside digital options.

EAS Daisy-Chaining

Built-in pass-through port allows you to keep existing Edge EAS sensors fully functional.

How You Can Control Your Tunes

Wireless

Bluetooth App Only

Operates completely independently. No CTS3 monitor is required. Just connect Medusa to your Hydra chip and switch tunes instantly from your iOS or Android device.

Touchscreen

CTS3 Touchscreen Integration

With a quick update and patch applied to your Edge CTS3, Medusa populates as a dedicated Power Level gauge on your layout screen for seamless in-dash control.

Advanced Access

Bypass Mode (Original Switch)

Need access to Level 00, No Start, or levels above 6? Switching to your original Hydra physical switch lets you bypass CTS3 display limits and access every tune on your chip.

Simple 5-Step Installation

1
Connect Ribbon Cables Unplug your existing Hydra ribbon cable and connect it to either port on the Medusa. Optionally, plug your original switch into the second port.
2
Pair Bluetooth App Download and open the Medusa app on your mobile device to establish wireless control.
3
Attach Edge CTS3 Cable (Optional) If utilizing touchscreen controls, plug Medusa's EAS cable into your Edge CTS3 6-pin port (supports daisy-chaining with other accessories).
4
Power On & Configure PIDs Turn key to "ON". Add the newly recognized "Power Level" PID gauge to your CTS3 screen layout.
5
Enjoy On-The-Fly Switching Seamlessly switch tune positions via phone, touchscreen, or manual physical switch.

Technical Notes & Compatibility

CTS3 Firmware Requirements

Before installing Medusa with an Edge CTS3, update your CTS3 using Edge's official Update Agent/Ignition software. After updating, apply the Power Hungry Performance CTS3 firmware patch to enable screen controls. (Patch not required if using Bluetooth app only).

Level Limits via CTS3 Touchscreen

The Edge CTS3 display interface natively supports 6 power levels (1–6). If you have more than 6 tunes programmed, or require Level 00/No Start, you must use Bypass Mode via the original Hydra switch or use the app.

Functionality Clarification

Medusa is a position controller interface. It does not re-flash, alter, or replace tune files stored on your Hydra Chip, nor does it turn the Edge CTS3 into a tuner programmer.

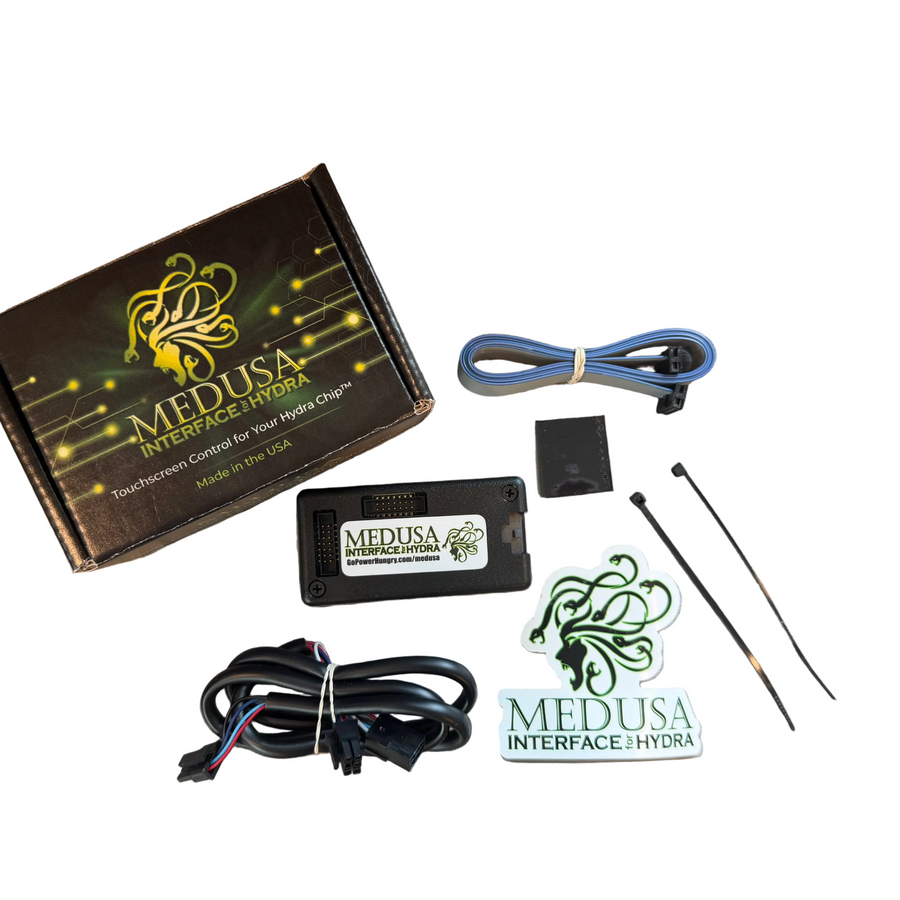

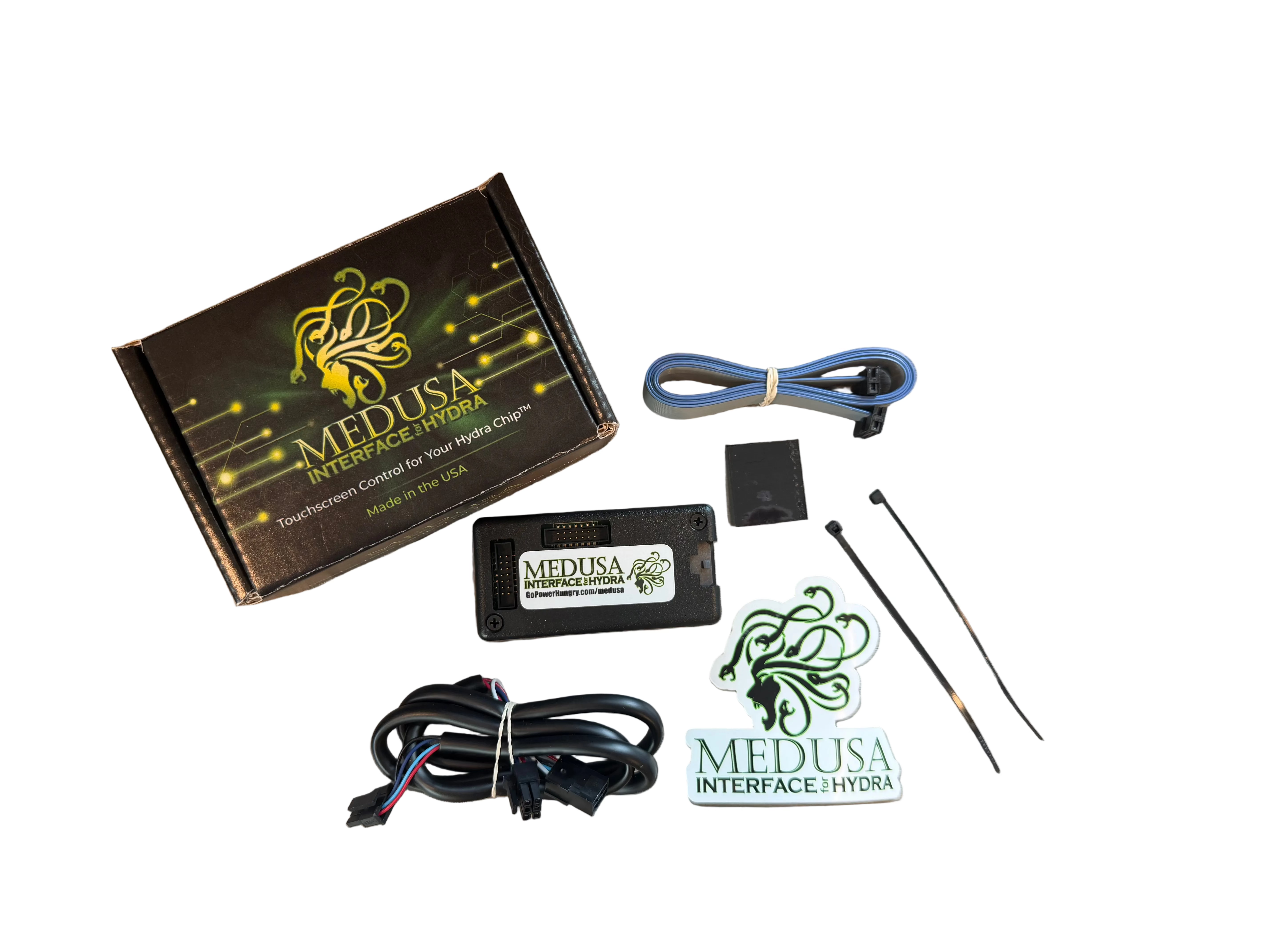

What's In The Box

  • ✔️ Medusa Interface Module (with Bluetooth)
  • ✔️ Medusa-to-CTS EAS Cable
  • ✔️ 3-Foot Ribbon Extension Cable
  • ✔️ Installation & Setup Guide
  • ✔️ Decal Pack

Note: PHP Hydra Chip and Edge CTS3 monitor are sold separately.

Product Specifications

Compatible Tuner PHP Hydra Chip
App Support iOS & Android (Medusa App)
Display Support Edge CTS3 (Updated)
Tuner Ports Dual Hydra Ribbon Ports
Display Connection 4-Pin Medusa to 6-Pin Edge EAS
