PHP Chimera Wireless Tuner | 2003-2007 6.0 Powerstroke

Description

Description

POWER HUNGRY PERFORMANCE CHIMERA

Wireless 6.0 Powerstroke Tuning From Your Phone

A small OBDII module that talks to the Chimera Connect app over Bluetooth. Tune, flash and check your truck right from the cab.

BluetoothECM + FICM + TCMStock Backup2003-2007 6.0L

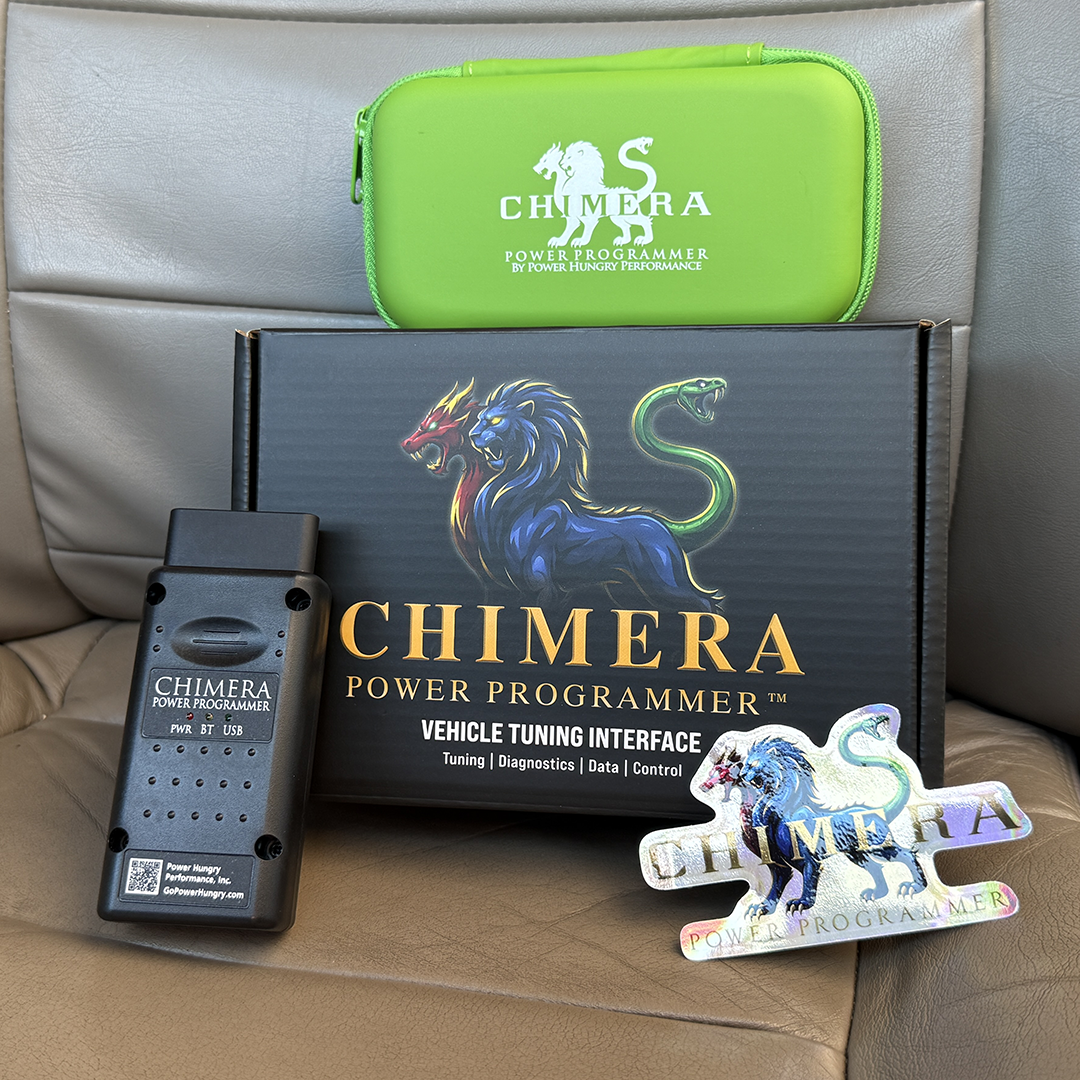

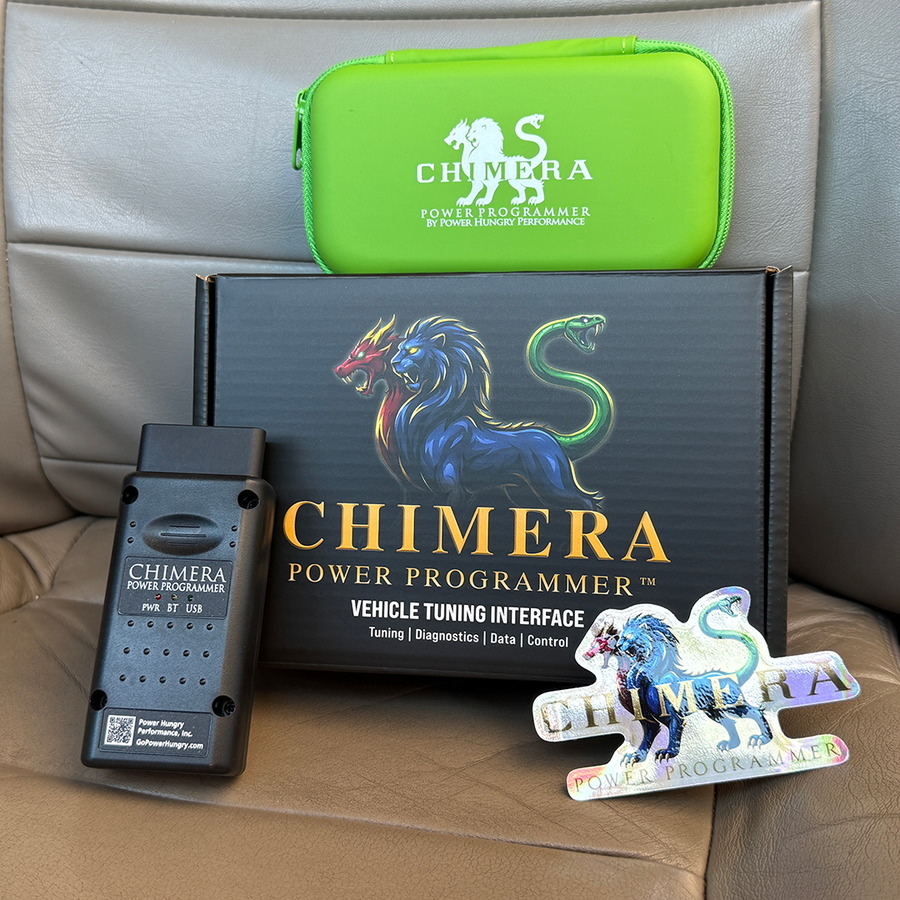

Power Hungry Performance Chimera 6.0 Powerstroke tuner

What It Does

📡

Wireless Bluetooth

Pairs with the Chimera Connect app over Bluetooth Low Energy. No laptop, no cable across the dash.

⚙

ECM Tuning

Cal-only or a full flash, right from your phone.

⚡

FICM Tuning

Uses write timing PHP has tested for consistent, reliable flashes.

⚙

TCM Tuning

Tune the transmission from the same tool.

📈

Live Data & Datalogging

Watch and log what your 6.0 is doing.

💾

Stock Backup

Saves a factory backup before you flash, so you can always go back.

📋

Flash History

Every flash is logged to the module's history, so you know what's on the truck.

🔑

Token Unlocks

Unlock a module with tokens. Extra tokens are available for more trucks.

How It Works

1

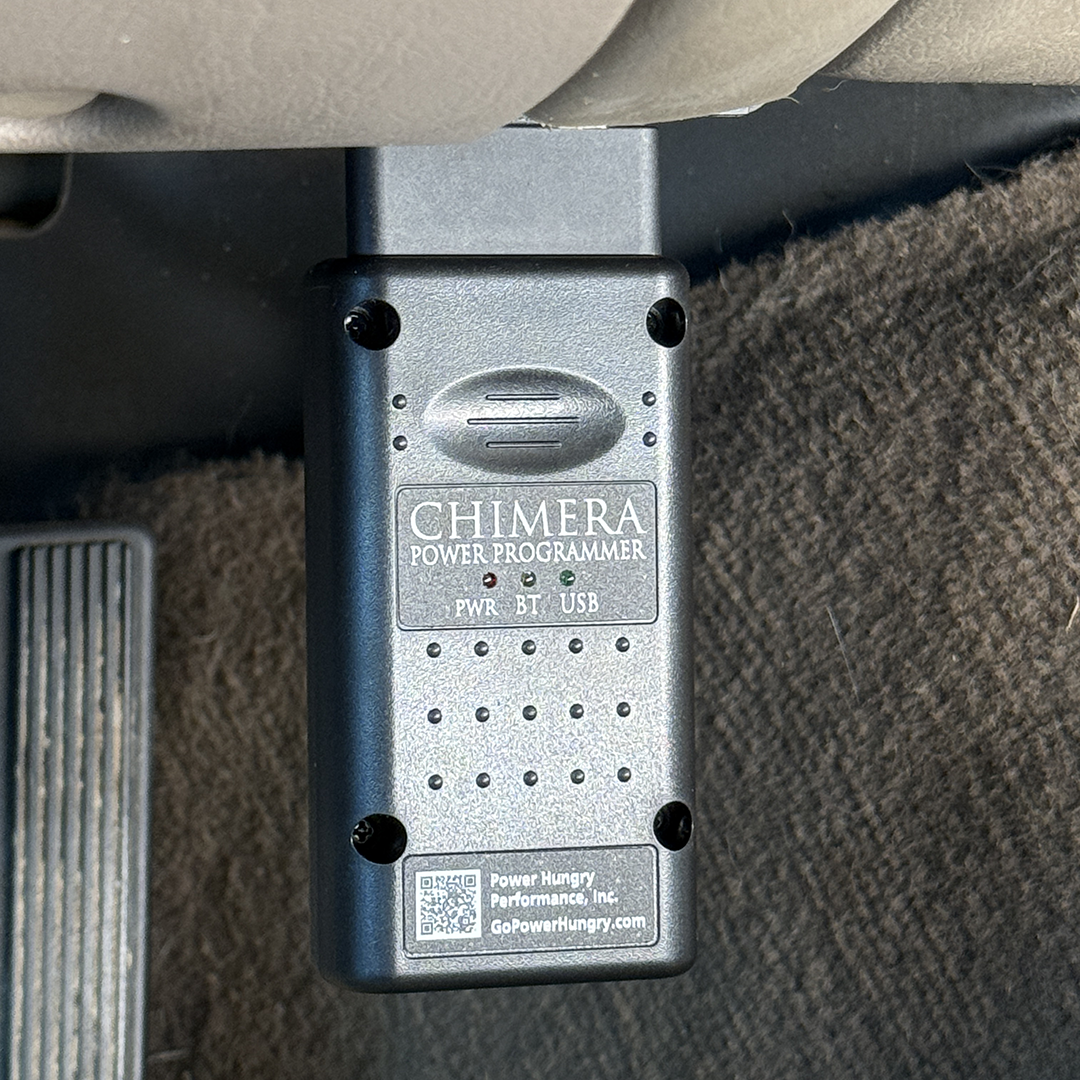

Plug it into the OBDII port. It runs off the truck's 12V, so there are no batteries or extra boxes. For bench work, power it with a 12V harness.

2

Open Chimera Connect on your iPhone or Android and connect. It shows up as "Chimera" with no pairing code.

3

The app reads the modules on the truck and adds your ECM and FICM to your garage.

4

Browse the tunes that match your calibration, unlock with tokens, and flash while you watch the progress live.

5

Your trucks, unlocks and flash history are saved to your Chimera Connect account. Sign in on a new phone and it's all there.

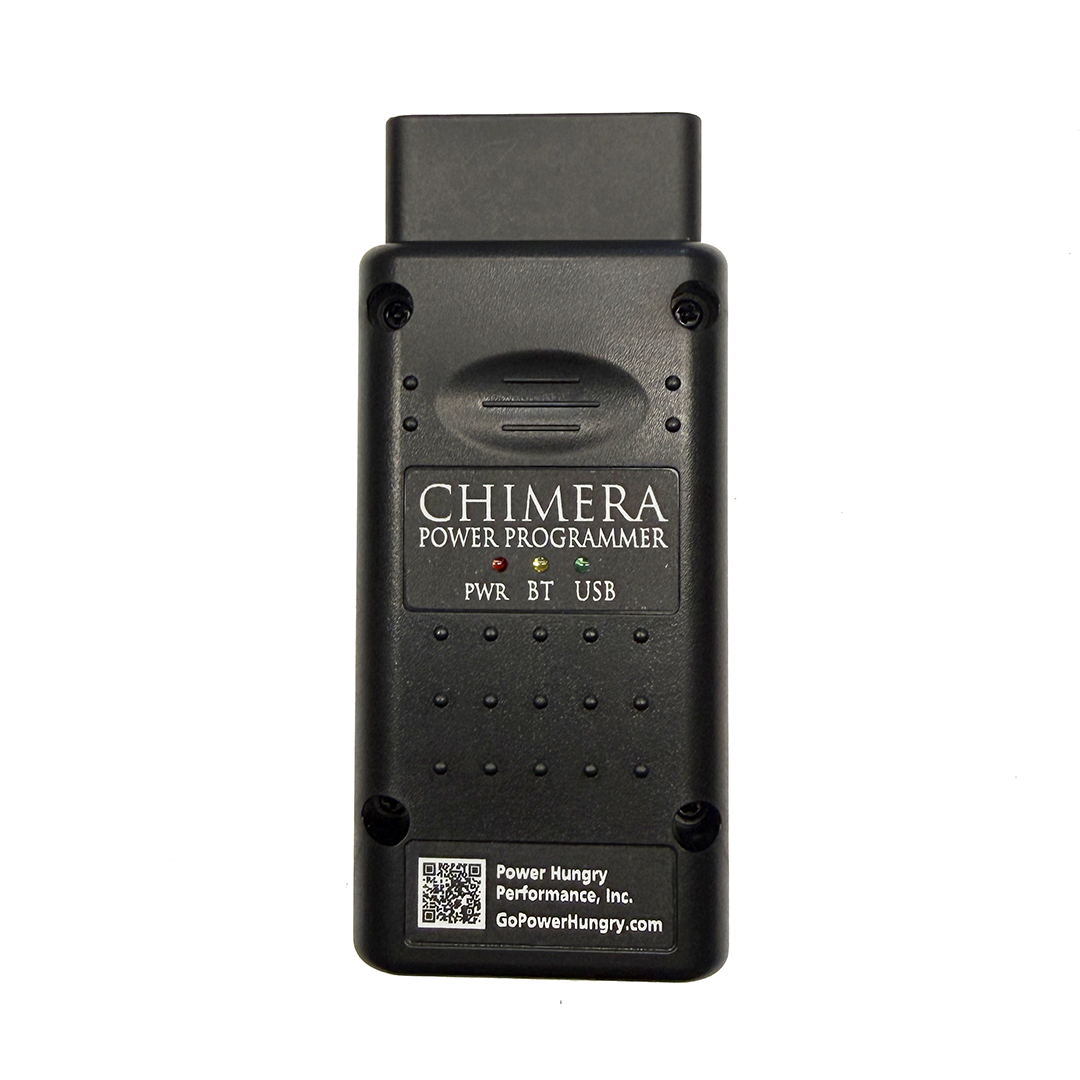

Status Lights

Red: Power

Blinks the whole time the unit is on and running.

Green: Vehicle (CAN)

Blinks while it's talking to the truck over the CAN bus. Some stickers label this one "USB."

Yellow: Bluetooth

Blinks when data is passing between the Chimera and your phone.

Specs

Vehicle connection	Built-in OBDII (J1962) male plug
Vehicle bus	High-speed CAN
Programming voltage	18V FEPS, switched on when needed
Phone connection	Bluetooth Low Energy (BLE)
App	Chimera Connect for iOS and Android
Power	12V from the OBDII port or a 12V bench harness
Processor	Espressif ESP32
Firmware	Can be updated in the field. The app checks the version every time it connects.

FITMENT

2003-2007 Ford 6.0L Powerstroke

Requirements & Tips

You'll need an iPhone or Android phone. Some iOS and Android tablets are supported.
During a flash, keep your phone close to the Chimera, and keep the truck's battery healthy or on a charger.
For the steadiest Bluetooth connection, stay away from heavy 2.4 GHz interference. Setting nearby Wi-Fi to 5 GHz helps.
