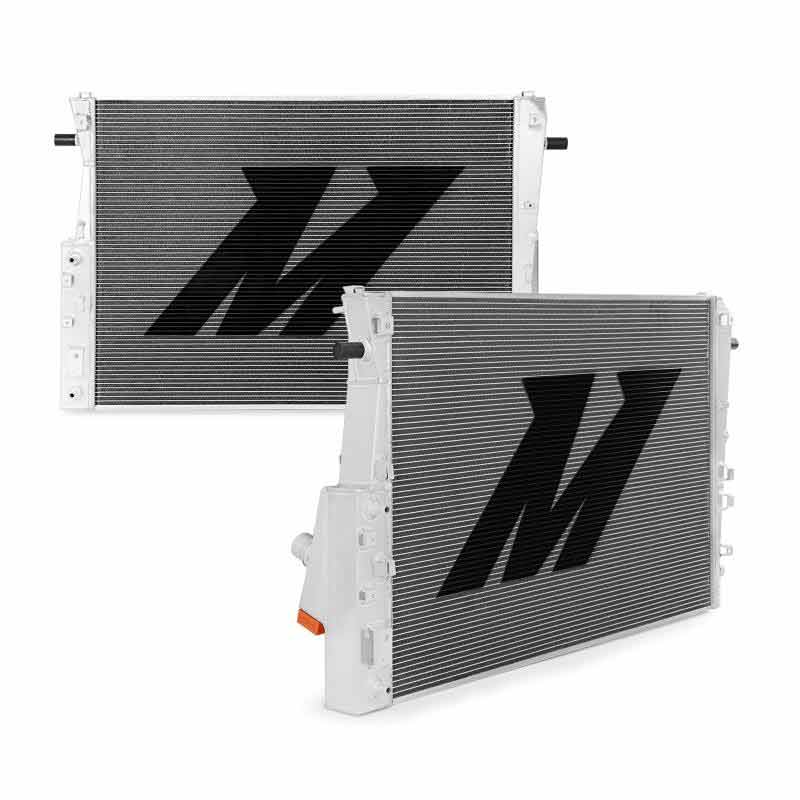

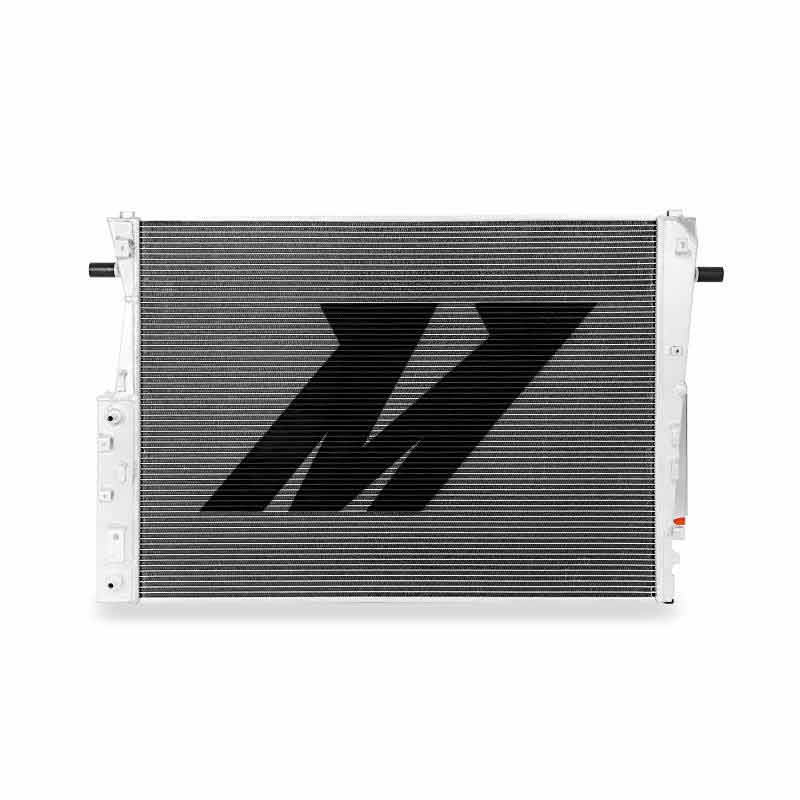

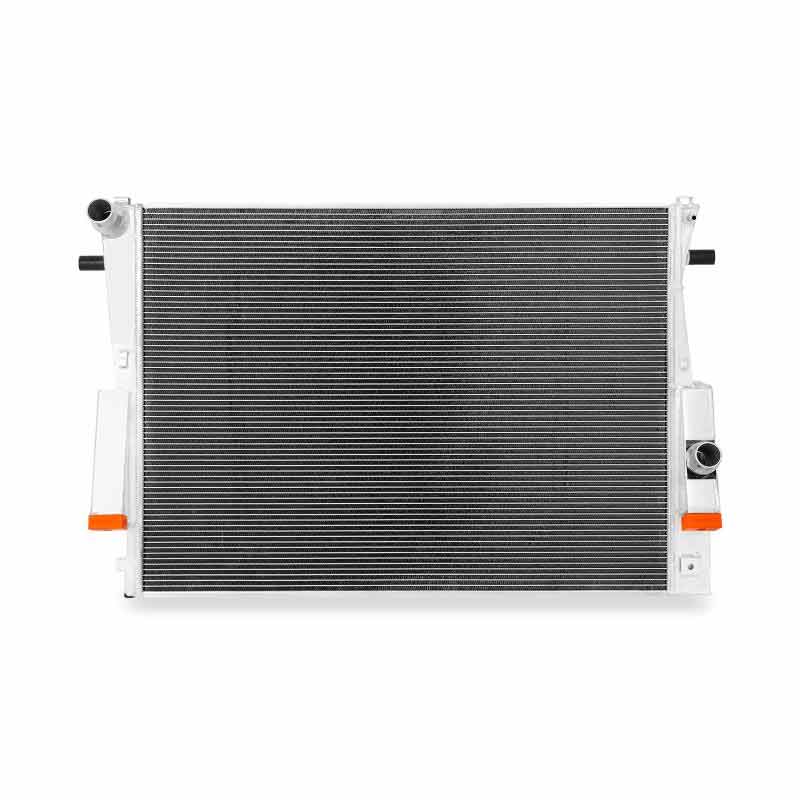

The Mishimoto MMRAD-F2D-08V2 Aluminum Performance Radiator for your 2008-2010 Ford 6.4L Powerstroke is the solution to fixing your leaky factory radiator. Upgrade your truck with the Mishimoto 6.4L Powerstroke aluminum radiator to put an end to puddles of coolant under your truck. Mishimoto radiators are constructed from high-quality aircraft-grade aluminum with a 100% brazed aluminum core. Our 6.4L radiator features strong TIG-welded aluminum end tanks for superior durability and longevity that will keep your Powerstroke on the road and out of the shop. The Ford F-250, F-350, F-450, and F-550 have different mounting designs than their predecessors, with two side mounting pegs which attach the radiator to the upper support. On the factory F-250 radiator, solid side mounting pegs transfer force from the truck directly to the radiator, causing failures. The engineers at Mishimoto designed rubber mounting pegs, specifically for this truck, to reduce the flex force aimed at the radiator end tanks. The Mishimoto performance radiator retains factory fitment for an easy installation process and includes a magnetic drain plug to catch any debris in your cooling system. As with all our products, this radiator is protected by the Mishimoto lifetime warranty.

  • Version 2 Product Design
  • Direct OEM Replacement
  • Tig-Welded Aluminum End Tanks
  • No Cutting Or Modification Required

MMRAD-F2D-08 Product Specifications:
Overall Size: 45.7" x 28.7" x 8.9"
Core Size: 37.01" x 27.48"
Rows: 2
Inlet: Factory-Style Quick-Disconnect
Outlet: Factory-Style Quick-Disconnect
Core Thickness: 2.76"
Tank Wall Thickness: 2.5mm (0.098")
Drain Plug Thread Size: M12 x 1.5
Coolant Capacity Factory Radiator: 1.25 Gallons
Coolant Capacity Mishimoto Radiator: 2.5 Gallons


Mishimoto Radiator
Magnetic Drain Plug w/ Dowty Oil Seal
(2) Rubber Mounting Pegs
(8) M6 x 1.0 x 14mm Bolts
Limited Lifetime Warranty

Warranty: Mishimoto Performance (MP), warrants all of its products under its 'no questions asked' limited lifetime warranty policy. Regardless of the defect in product, Mishimoto will replace the original product. Warranty claims must be accompanied by the original sales receipt from an authorized dealer.

A trained professional should install all MP products. Any issues with compatibility or installation should be addressed before attempting to install the product.The purchaser's remedy for breach of this limited warranty, exclusive of all other remedies provided by law, is expressly limited to repair or replacement of any part or parts. All products returned for warranty consideration must be returned to MP with all transportation expenses prepaid.

MP shall not be responsible for damages to its products or injury to persons using the products in any manner that would constitute improper operation, including but not limited to: incorrect opening of radiator pressure caps, burst hoses, unintended application or usage not intended by MP, negligence, improper installation, or any other use that may cause damages or injury. MP shall not be responsible for injury or harm to persons or property when caused by persons or vehicles using its products.

Accident Protection:
Mishimoto, under its no questions asked warranty policy, will provide a warranty for all claims including vehicles involved in accidents. Warranty claims must include pictures of the accident and an official police report, and must be within three months of the accident.

For all warranty claims, please contact Mishimoto.
