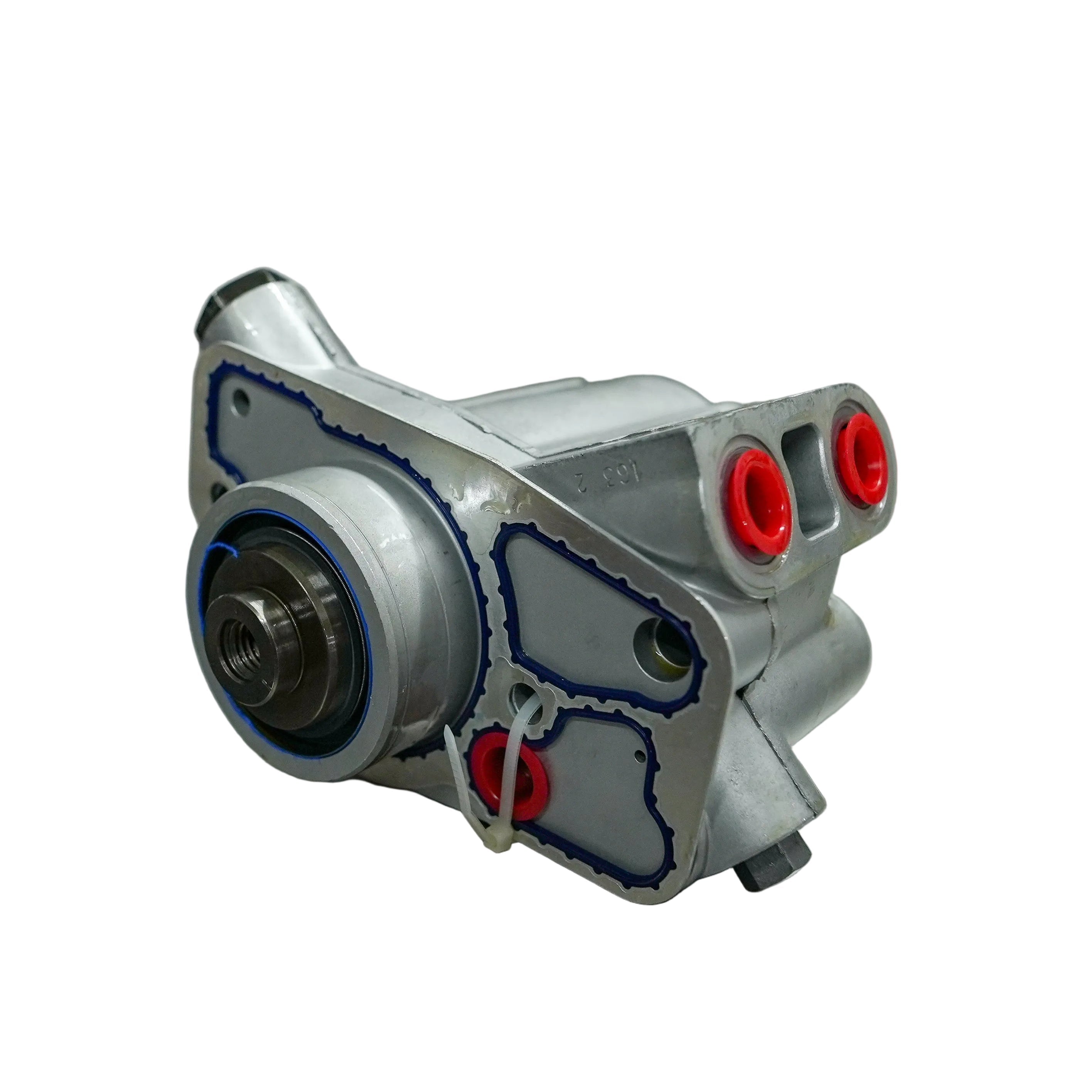

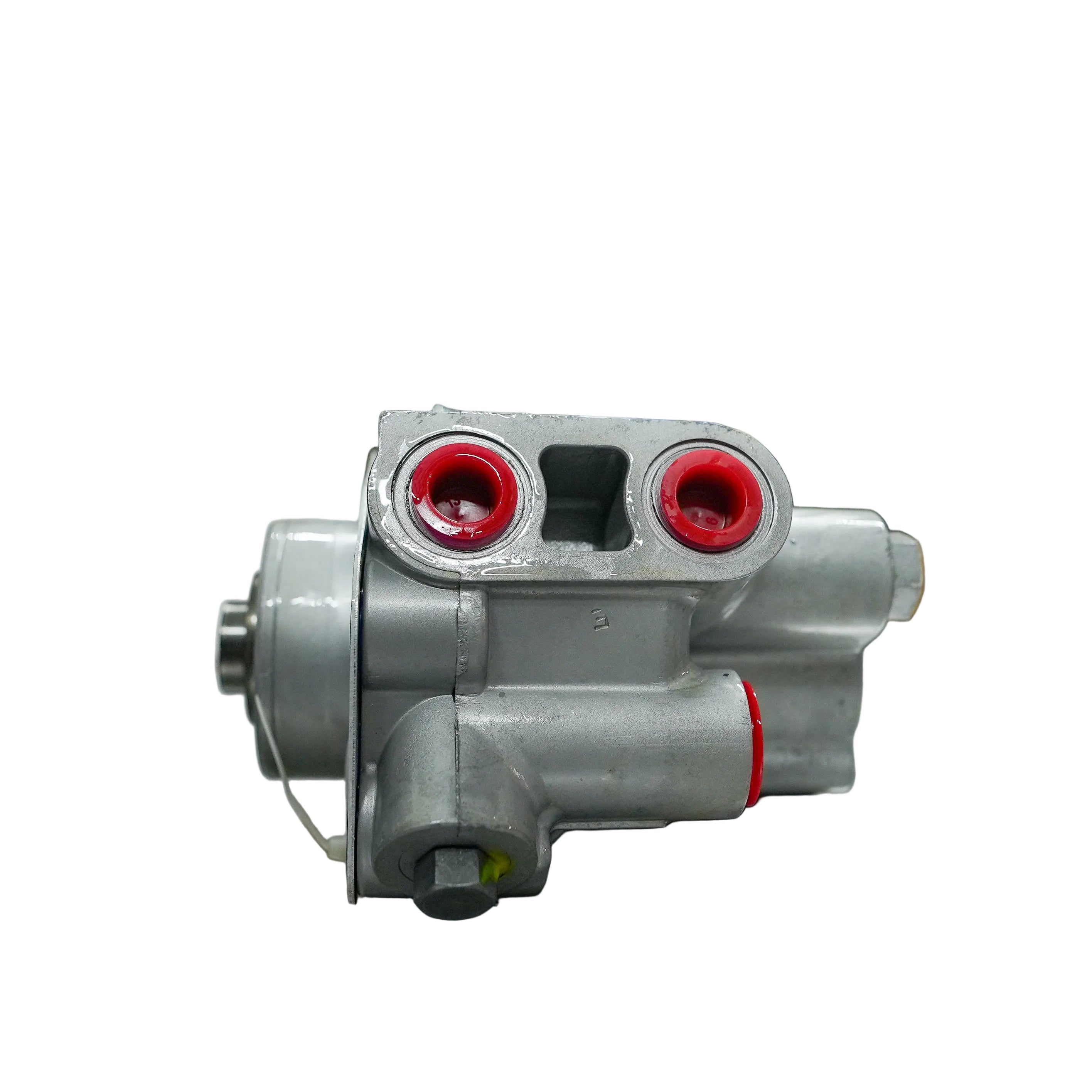

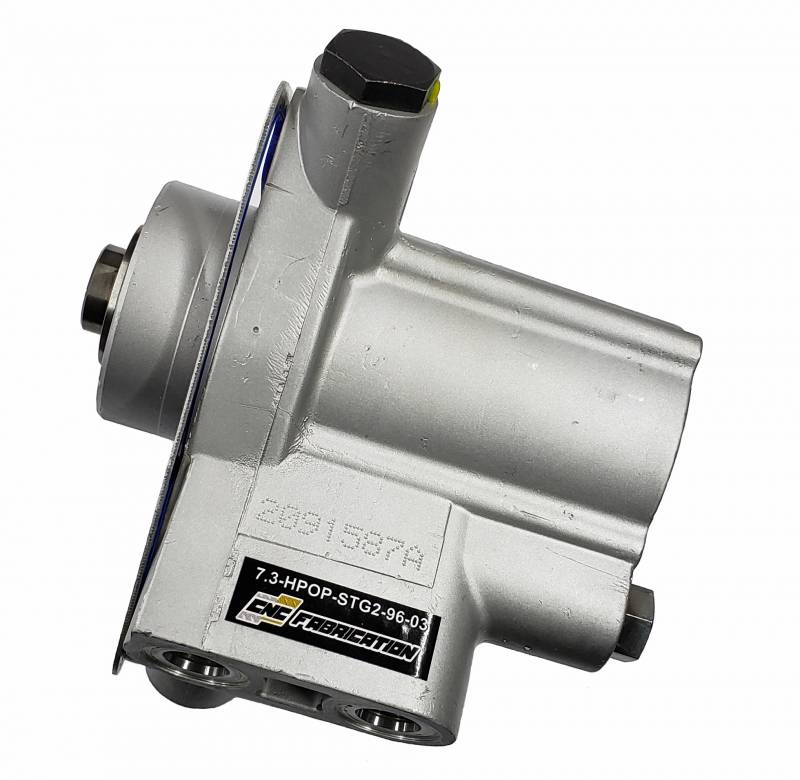

CNC Fabrication Stage 2 High Pressure Oil Pump (HPOP) - 7.3 Powerstroke
If you're running bigger hybrids or just want the 7.3 to snap to attention, this is the pump. CNC Fab's in-house swash housing upgrade pushes this Stage 2 to about 30% more flow than a brand-new Bosch 99.5-03 pump. That's plenty of volume to hold 250/100 hybrid injectors, and CNC has data logged one of these on their own drag truck running 250/200 injectors, holding 3000+ psi at 40-45% duty cycle all season.
It's built best for 230-250cc 100% nozzle hybrids, but it also wakes up stock injectors with better throttle response. Results in a hot or race tune can vary with injector builder and the condition of your high pressure oil system o-rings, and anything bigger than 250cc will likely need a larger pump setup.

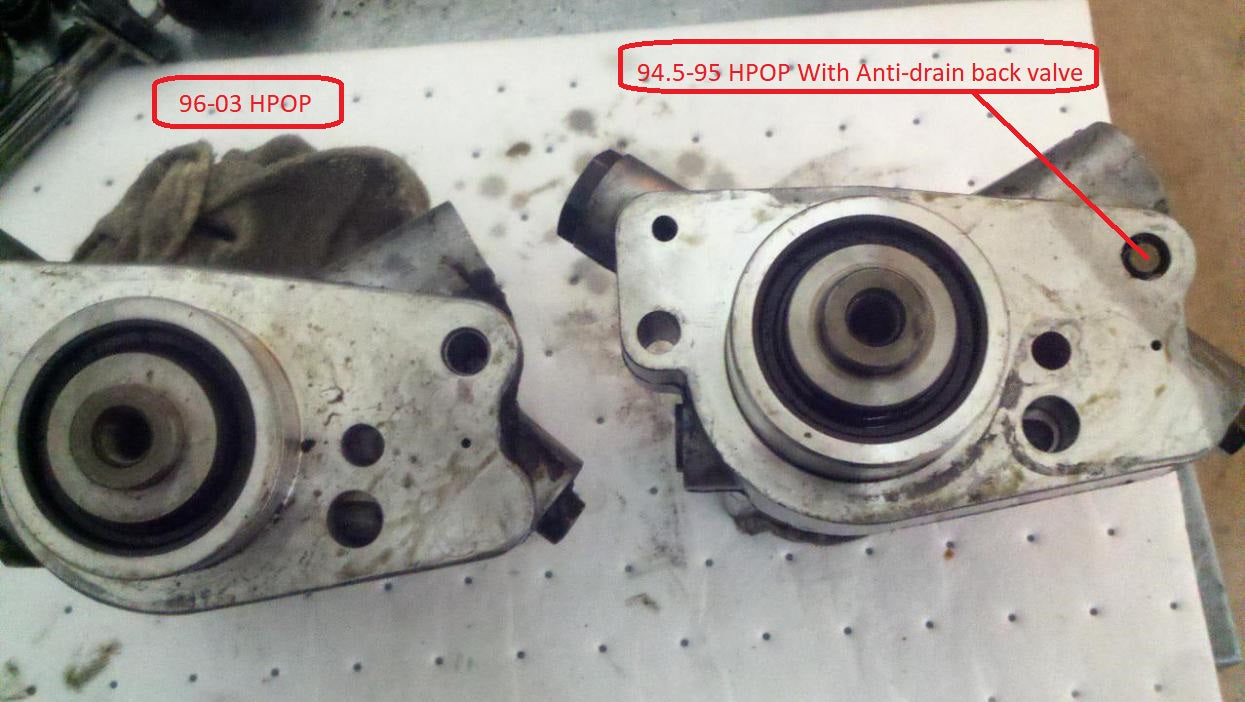

Pick the right one for your year: 1996-2003 trucks get PN 424018. 1994.5-1995 trucks get PN 424016, built for the early trucks' different front engine cover with the anti-drain back in the pump.
Features & Details:
-
96-03 (PN 424018) and 94.5-95 (PN 424016): Same Stage 2 flow, built for each year's housing
-
More Volume: About 30% more flow than a new 99.5-03 stock pump
-
Injector Support: Stock up to 250cc hybrid injectors
-
In-House Swash Housing: Improved volume and fitment
-
Steel Thread Inserts: Reinforced outlet ports to prevent thread pull-out
-
Bench Tested: Flow test sheet included with every pump
-
Fresh Seals: New Viton O-rings and a new mounting gasket installed
-
Warranty: 1-year unlimited mileage
What's Included:
- Rebuilt Stage 2 HPOP
- New mounting gasket
- New Viton O-rings
- Flow bench test results
Note: HPOP line fittings are not included. Reuse your existing fittings or order them separately.
Injector Compatibility
Works with: Stock to 250cc injectors, best matched to 230-250cc 100% nozzle hybrids
Not for: Injectors larger than 250cc, which will likely need a larger pump setup
Core Charge
The price includes a $300 refundable core charge. Once your old pump is returned, the $300 is refunded. 94.5-95 cores need to be the correct early housing to get full credit.
