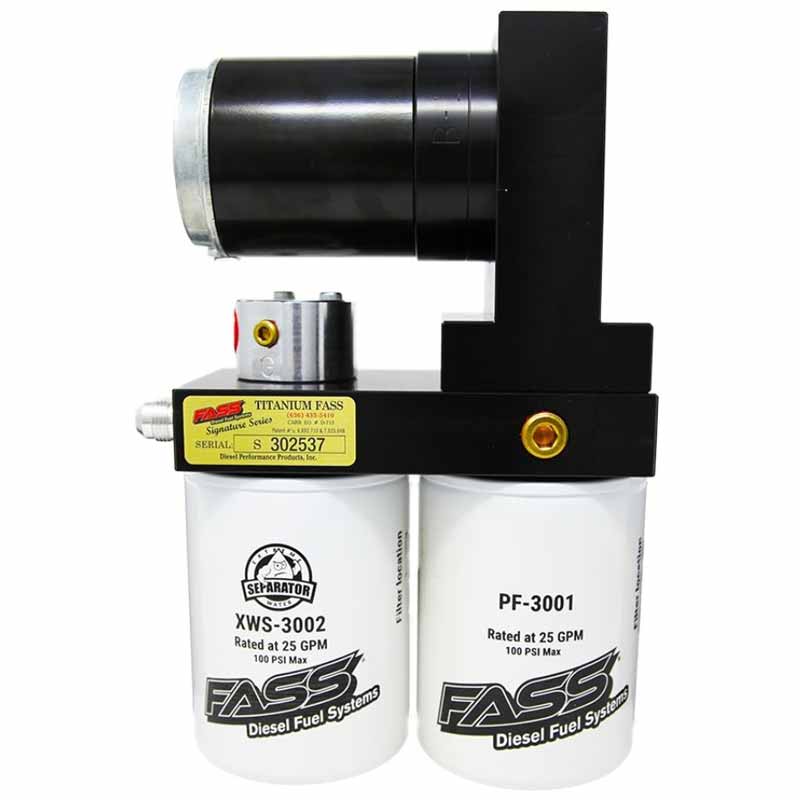

This is the big Titanium Signature Series for the Excursion. It flows 240 GPH for heavily built 7.3s and is rated for 1,100 hp and up with the right fueling. It's set up specifically for the Excursion chassis and tank.
The kit comes with FASS's billet 6061-T6 bulkhead/suction tube, which gives you a 5/8" pickup and a 1/2" return in one fitting. That means no cutting into the filler neck. The PTFE pickup tube trims to your tank depth, and when it's set up right you can run down to about 1/8 tank. Everything that makes the Titanium Signature Series our go-to: FASS Whisper Technology keeps pump noise way down, radiused internal passages keep air from getting whipped back into the fuel, and the Mass Flow Return design sends unused fuel back to the tank after it's been filtered, so the fuel in your system is always being cleaned. It mounts on machined steel brackets that use your factory bed bolt, so there's no drilling or welding on the frame to hang the pump.
