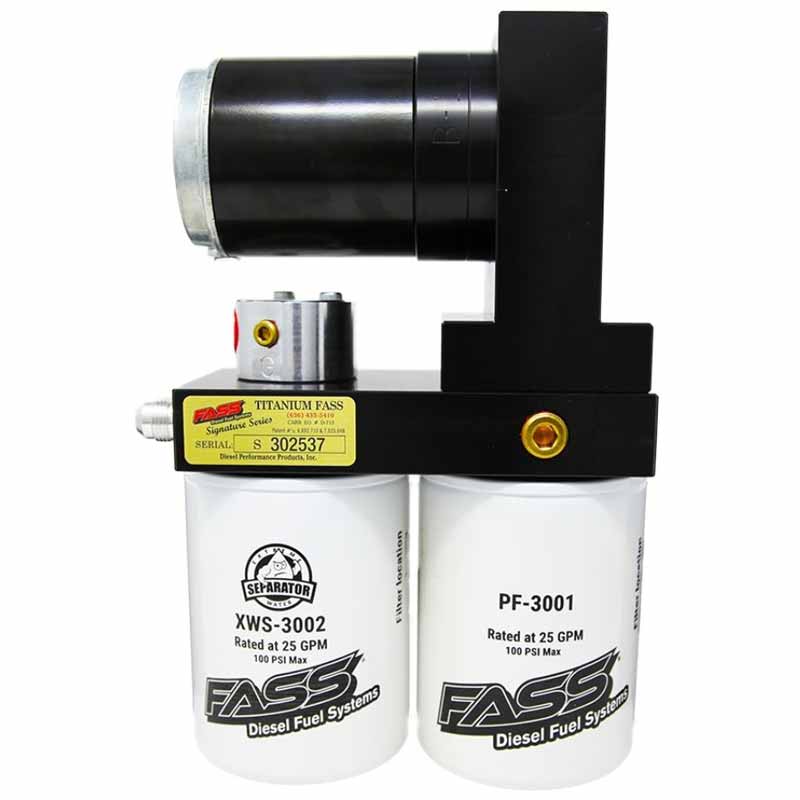

This is the Excursion-specific version of the FASS 140 GPH Titanium Signature Series. It has the same pump and filtration as the F14 kit we sell for Super Duty pickups, but it's set up for the Excursion's chassis and tank. It's good for up to about 600 hp.
The kit comes with FASS's billet 6061-T6 bulkhead/suction tube, which gives you a 5/8" pickup and a 1/2" return in one fitting. That means no cutting into the filler neck. The PTFE pickup tube trims to your tank depth, and when it's set up right you can run down to about 1/8 tank. Everything that makes the Titanium Signature Series our go-to: FASS Whisper Technology keeps pump noise way down, radiused internal passages keep air from getting whipped back into the fuel, and the Mass Flow Return design sends unused fuel back to the tank after it's been filtered, so the fuel in your system is always being cleaned. It mounts on machined steel brackets that use your factory bed bolt, so there's no drilling or welding on the frame to hang the pump.
