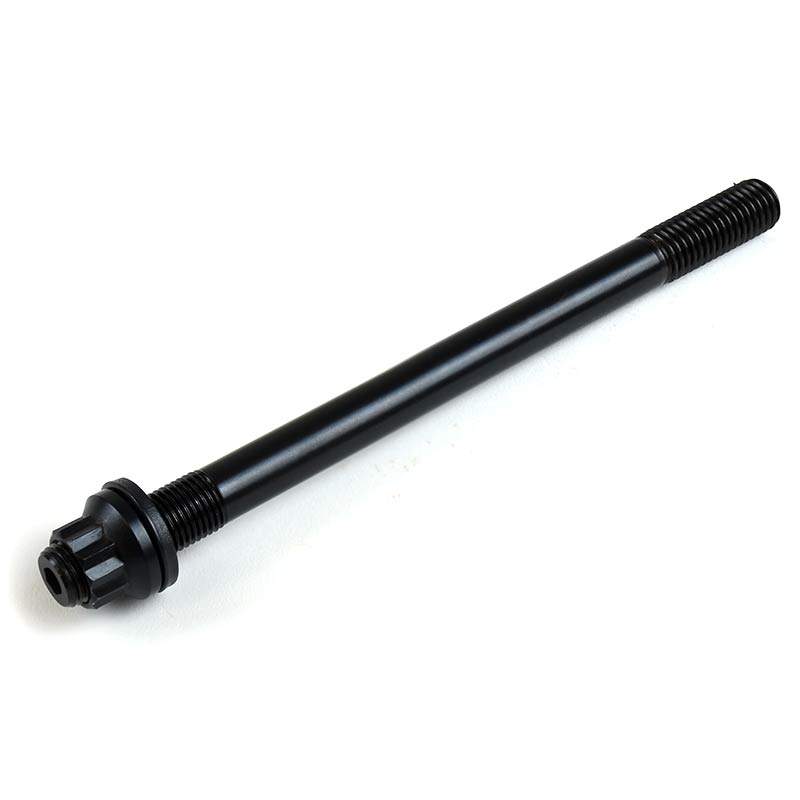

XDP X220 SERIES HEAD STUD KIT XD3013HS 94-03

$494.95

  • Brand: ARP
  • Availability: In Stock

The XDP X220 Series Head Stud Kit XD3013HS provides your 1994-2003 Ford 7.3L Powerstroke with the increased clamping power you need. Upgrading the factory head bolts is a must when adding horsepower and torque to your Super Duty. The OEM bolts typically can't handle the additional pressure from high-performance applications which can lead to the cylinder heads lifting. Upgrading to studs helps keep your cylinder heads locked down and avoid head gasket failures. The XDP head studs are constructed from high-quality 8740 Chrome Moly that also includes a proprietary element added for superior strength and durability. The threads are rolled after heat-treating to deliver maximum fatigue strength. These head studs are rated at 220,000+ psi tensile strength and 210,000+ psi yield strength to ensure the cylinder heads on your engine stay locked in place under higher combustion pressures.

In addition to the increased strength, replacing the head bolts with studs also allows you to obtain a more precise torque reading. A conventional bolt gets twisted as it is tightened, so it's reacting to two different forces at the same time. With a stud the force gets applied to the vertical axis, resulting in a more even clamping force. These studs are reusable, unlike OEM Torque-To-Yield (TTY) studs which must be replaced after each use. Another benefit of studs is proper alignment of the cylinder heads every time and provides for easier engine assembly. These studs are manufactured in an ISO/TS 16949 quality control facility. Included with the stud kit are washers and 12-point nuts.

FEATURES:
  • Includes Washers & 12 Point Nuts
  • Yield Strength 210K psi - 230K psi
  • Tensile Strength 220K psi - 236K psi
  • Will Not Stretch Like The Factory Studs
  • Thread Has Been Rolled After Heat Treatment
  • High-Strength 8740 Chrome Moly Construction
  • 10mm Studs Test Out At A Max Load: Over 120KN
  • Manufactured In An ISO/TS 16949 Quality Control Factory
  • Studs Are Reusable, Unlike Torque-To-Yield (TTY) Bolts Which Much Be Replaced After Each Use
